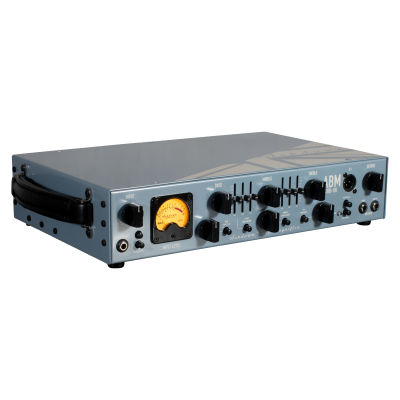

MAS UK-ABM-300-EVO-IV
Not available
Category
Code
MAS UK-ABM-300-EVO-IV
Box Quantity / Multiples
1
Brand
Minimum quantity
1
Description
The UK-built UK-ABM-300-EVO IV is a powerhouse of tonal flexibility and classic warmth. Featuring 300 watts of pure Ashdown bass tone, it boasts a foot-switchable Variable Valve Drive Plus, precision 9-band EQ, One Knob Compressor, and Sub-Harmonic Generator.
Built for performance and studio use alike, with comprehensive connectivity including FX loop, tuner out, and Line Input.
Made in England.
SPECIFICATIONS
Power Output: 300 Watts
Power Requirement: 115–230 Volts
Impedance: Minimum 4 Ohms
Preamp Tubes: 1 × 12AX7
Speaker Outputs: 2 × Neutrik Jack/Speakon outputs
Line Input: Impedance 22k Ohms, input level 0dBu nominal
DI Output: 600 Ohm balanced, Level 0dBu nominal
Tuner Output: Impedance 22k Ohms, Level 0dBu nominal
Effects Send: Impedance 22k Ohm, Level 0dBu nominal
Effects Return: Impedance 22k Ohms, Input Level 0dBu nominal
Frequency Response: -3dB @ 17Hz and 30kHz
High Instrument Input: Impedance 3.9m Ohms, input range 150mV
Low Instrument Input: Impedance 10k Ohms, input range 300mV – 40V p-p
