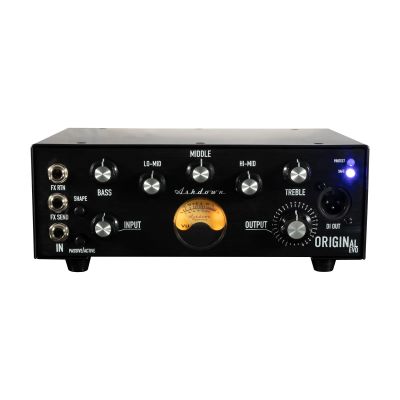

Original EVO 300

Elevate your bass playing with the Ashdown OriginAL EVO Mini Bass Head, a sleek and powerful amplifier that offers 300 Watts of pure, portable bass excellence. With its 5-band EQ, modern conveniences like an effects loop and XLR DI output, and a rugged design, this amp head is the ultimate companion for gigging bassists. SPECIFICATION Power Output - 300 Watts Power Requirements - 115-230 Volts Speaker Outputs - 2 x Jack outputs Frequency Response - -3dB @ 22Hz and 25KHz High Instrument Input - Impedance 3.9m Ohms, input range 150mV - 20 p-p Low Instrument Input - Impedance 1M Ohms, input range 150mV - 10V p-p Line Input - Impedance 10k Ohms, input range 300mV - 40V p-p DI Output - 600 Ohm balanced, Level -20dBu nominal Impedance - Minimum 4 Ohms Signal to noise- Better than 80dB (EQ flat) EQ - Bass +/-15dB @ 100Hz, Lo Mid +/-15dB @ 220Hz, Middle +/-15dB @ 660Hz, Hi Mid +/-15dB @ 1.6kHz, Treble +/-15dB @ 7kHz shelving Effects Send - Impedance 22k Ohm, Level 0dBu nominal Effects Return - Impedance 22k Ohms, Input Level 0dBu Nominal Distortion - Less than 0.5% THD
