Rootmaster EVO III 800
Available
Category
Code
MAS RM-800-EVO-III
Dimensions
16.93 x 14.17 x 7.09 in (Length x Width x Height)
Weight
7.81 lbs
Box Quantity / Multiples
1
Brand
Minimum quantity
1
Description

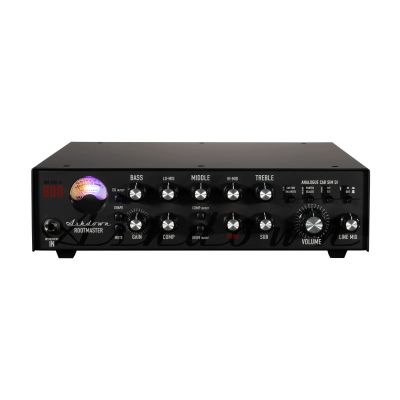

Delivering 800 watts of iconic Ashdown tone in a lightweight head, the Rootmaster 800 EVO III packs a versatile EQ, Sub Harmonic Generator, Compression, and Valve Emulated Drive for maximum flexibility.
Rugged, reliable, it also features an Analogue Cab Sim DI output for seamless live or studio use.
SPECIFICATIONS
Power Output: 800 Watts
Power Requirements: 115–230 Volts
Impedance: Minimum 4 Ohms
Speaker Outputs: 2 × Neutrik Speakon/Jack outputs
High Instrument Input: Impedance 3.9M Ohms, input range 150mV – 20V p-p
Low Instrument Input: Impedance 10k Ohms, input range 300mV – 405V p-p
Line Input: Impedance 22k Ohms, input level 0dBu nominal
DI Output: 420 Ohm balanced, Level 0dBu nominal
Effects Send: Impedance 22k Ohm, Level 0dBu nominal
Effects Return: Impedance 22k Ohms, Input Level 0dBu nominal
Frequency Response: –3dB @ 22Hz and 25kHz
Signal to Noise: Better than 80dB (EQ flat)
EQ
Bass: ±15dB @ 100Hz
Lo Mid: ±15dB @ 340Hz
Middle: ±15dB @ 660Hz
Hi Mid: ±15dB @ 1.6kHz
Treble: ±15dB @ 7kHz shelving
Distortion: Less than 0.5% THD
