Rootmaster EVO III 500
Available
Category
Code
MAS RM-500-EVO-III
Dimensions
16.93 x 14.17 x 7.09 in (Length x Width x Height)
Weight
6.57 lbs
Box Quantity / Multiples
1
Brand
Minimum quantity
1
Description

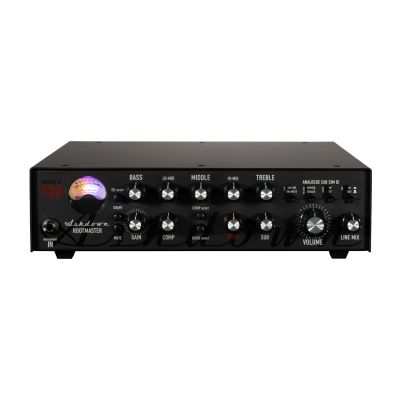

Delivering 500 watts of classic Ashdown sound in a lightweight, portable head, the Rootmaster 500 EVO III combines a flexible EQ, Sub Harmonic Generator, Compression, and Valve Emulated Drive with pro features like an Analogue Cab Sim DI output, balanced D.I., and monitor filters. This makes it a rugged, reliable choice for stage and studio alike.
SPECIFICATIONS
Power Output: 500 Watts
Power Requirements: 115–230 Volts
Impedance: Minimum 4 Ohms
Speaker Outputs: 2 × Neutrik Speakon/Jack outputs
High Instrument Input: Impedance 3.9M Ohms, input range 150mV
Low Instrument Input: Impedance 10k Ohms, input range 300mV – 405V p-p
Line Input: Impedance 22k Ohms, input level 0dBu nominal
DI Output: 420 Ohm balanced, Level 0dBu nominal
Effects Send: Impedance 22k Ohm, Level 0dBu nominal
Effects Return: Impedance 22k Ohms, Input Level 0dBu nominal
Frequency Response: –3dB @ 17Hz and 30kHz
Signal to Noise: Better than 80dB (EQ flat)
EQ
Bass: ±15dB @ 100Hz
Lo Mid: ±15dB @ 340Hz
Middle: ±15dB @ 660Hz
Hi Mid: ±15dB @ 1.6kHz
Treble: ±15dB @ 7kHz shelving
Distortion: Less than 0.5% THD
