ABM 600w Dual VU Rack Head
Limited Stock
Category
Code
MAS UK-ABM-600-DR-EVO-IV
Dimensions
20.87 x 18.11 x 10.63 in (Length x Width x Height)
Weight
28.36 lbs
Box Quantity / Multiples
1
Brand
Minimum quantity
1
Description

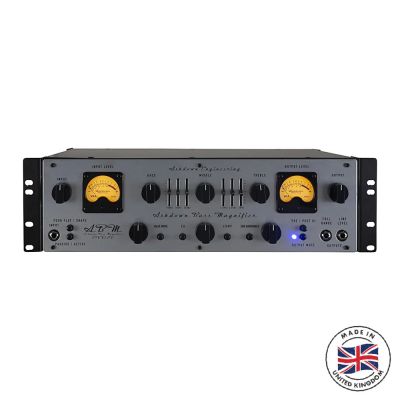

The UK-ABM-600-EVO-IV Dual VU Rack Head delivers 600 watts of stage-ready power in a rugged 3U steel chassis, complete with Ashdown's signature dual illuminated VU meters. Its class-leading preamp features Variable Valve Drive Plus for everything from clean warmth to driven grit, while the 9-band EQ, one-knob compressor, and Sub-Harmonic Generator give you precision control and huge low-end authority. Built for touring reliability with pro-grade connectivity, the ABM 600 is an industry-standard amp head trusted by working bassists worldwide.
UK MADE.
SPECIFICATIONS
Power Output: 600 Watts
Power Requirement: 115–230 Volts
Output Tubes: 1 × 12AX7
Speaker Outputs: 4 × Jack/Speakon outputs
High Instrument Input: Impedance 10kΩ, input range 150mV
Low Instrument Input: Impedance 10kΩ, input range 300mV – 40V p-p
Line Input: Impedance 22kΩ, input level 0dBu nominal
DI Output: 600Ω balanced, Level 0dBu nominal
Tuner Output: Impedance 22kΩ, Level 0dBu nominal
Effects Send: Impedance 22kΩ, Level 0dBu nominal
Effects Return: Impedance 22kΩ, input level 0dBu nominal
Frequency Response: –3dB @ 17Hz – 30kHz
Impedance: Minimum 4 Ohms per side
