13ft Heavy Duty Steel Crank-Up Lighting Truss Stand

Quik Lok SLS15

Heavy-Duty Steel Winch Lighting and Truss Support Stand.

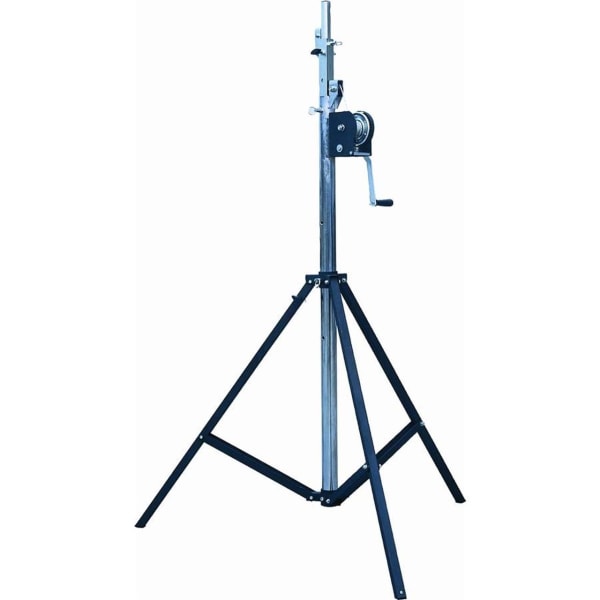

The Quik Lok SLS15 is a heavy-duty steel winch stand designed to support lighting rigs, trussing, and PA speaker systems. Built for safety and structural stability in stage and event production environments, it features a hand-crank winch mechanism that allows smooth raising and lowering of heavy equipment. The stand incorporates a standard 35 mm (1.38 in) top terminal mount and is TÜV and GS certified for safety compliance. It reaches a maximum height of 4,000 mm (157.48 in), extends to a wide 1,700 mm (66.93 in) base footprint for maximum anti-tip stability, and supports heavy loads up to 85 kg (187.39 lbs). It is compatible with optional crossbars and truss adapters such as the S195, S191-1,5BK/CH, and QT3200-T2.

SPECIFICATIONS:

• Base spread: 1,700 mm (66.93 in)

• Category: Lighting stand / Winch stand / Truss support

• Certifications: TÜV / GS certified

• Color: Black / Steel

• Compatible accessories: S195, S191-1,5BK or CH, QT3200-T2 truss adapters and crossbars

• Lifting mechanism: Hand-crank winch

• Material: Steel

• Maximum height: 4,000 mm (157.48 in)

• Maximum supported weight: 85 kg (187.39 lbs)

• Minimum height: 1,750 mm (68.90 in)

• Support: Ground tripod

• Top tube diameter: 35 mm (1.38 in)

• Use: Stage lighting, trussing, PA speakers

• Weight: 25 kg (55.12 lbs)
