Pair of Heavy Duty Speaker Wall Brackets with 35mm mounting hole Adj Tilt

Quik Lok SB781

Pair of Wall-Mount Speaker Brackets with Adjustable Depth and Tilt.

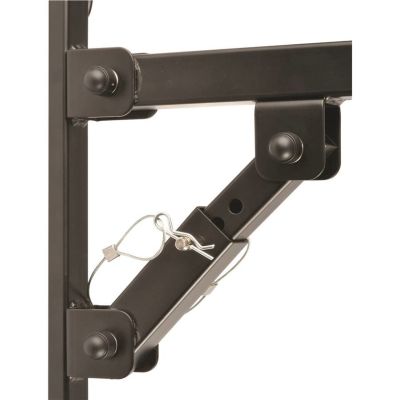

The Quik Lok SB781 is a pair of heavy-duty, all-steel wall-mount speaker brackets designed for PA speakers featuring standard 35 mm mounting sockets. Constructed with robust 30 x 30 mm square steel tubing, each bracket provides custom orientation options with 3 depth settings for the distance between the wall and center pin: 233 mm, 237 mm, and 285 mm (9.17 in, 9.33 in, and 11.22 in). Vertical tilt is adjustable across 3 positions (0°, 5°, and 13°) secured by a safety pin mechanism. Capable of supporting heavy loads up to 40 kg (88.18 lbs) per bracket, the system offers a reliable installation solution for live venues, houses of worship, and commercial sound setups.

SPECIFICATIONS:

• Category: Speaker stand / Wall mount bracket pair

• Color: Black

• Distance from wall to pin center: Adjustable in 3 positions: 233 mm, 237 mm, 285 mm (9.17 in, 9.33 in, 11.22 in)

• Frame tubing size: 30 x 30 mm (1.18 x 1.18 in)

• Material: Steel

• Maximum supported weight: 40 kg (88.18 lbs) per bracket

• Pin diameter: 35 mm (1.38 in)

• Security / Locking: Yes (Safety tilt pin system)

• Use: PA speaker

• Vertical tilt adjustment: 3 positions (0°, 5°, 13°) with safety pin

• Weight: 2.80 kg (6.17 lbs) per bracket
