Pro Series Double-Braced Three-Tier X Keyboard Stand with Adj Tilt 2nd & 3rd Tiers

Available

Category

KEYBOARD STANDS

Code

TQM QL723

Dimensions

43.31 x 25.39 x 7.87 in (Length x Width x Height)

Brand

QUIK LOK

MAP Price

$289.99

Login to see prices

Description

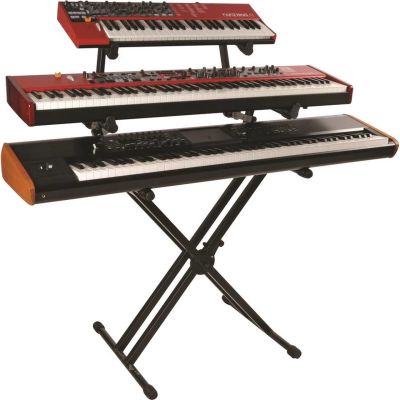

Quik Lok QL723

Professional 3-Tier Double-Braced X Keyboard Stand.

The Quik Lok QL723 is a heavy-duty, three-tier double-braced X keyboard stand designed for musicians seeking exceptional stability and smooth adjustment. Built with 30 x 30 mm steel tubing and 30 mm diameter support legs in a satin black finish, it features a 7-position lever-locking height adjustment system. The upper two tiers feature die-cast aluminum tooth-locking clamps to eliminate play, offering complete adjustment over tilt, angle, and depth with a usable arm length of 420 mm (16.54 in). The top tier can be height-adjusted relative to the second tier using three distinct position settings. All tiers are fitted with adjustable rubber feet to ensure secure grip across keyboards of varying sizes. The stand supports a maximum total load of 90 kg (198.42 lbs) with up to 27 kg (59.52 lbs) per upper tier, folds down to a compact 1,010 x 610 x 170 mm (39.76 x 24.02 x 6.69 in) footprint, and can be expanded using optional accessories like the QLX4 mic boom arm, QLX5 music holder, and IPS13 tablet holder.

SPECIFICATIONS:

  • 1st to 2nd tier distance: 170 mm (6.69 in)

  • 2nd to 3rd tier distance: 100 / 200 / 220 mm (3.94 / 7.87 / 8.66 in)

  • Additional tier depth: 420 mm (16.54 in)

  • Additional tier tilt angles: 90°, 77°, 64°, 51°

  • Base depth: 610 mm (24.02 in)

  • Category: Stand

  • Color: Black

  • Foldable: Yes

  • Folded dimensions: 1,010 x 610 x 170 mm (39.76 x 24.02 x 6.69 in)

  • Height adjustable: Yes (7-position lever system)

  • Main tier depth: 435 mm (17.13 in)

  • Material: Steel (30 x 30 mm frame / 30 mm tier tubing) with die-cast aluminum clamps

  • Maximum height: 990 mm (38.98 in)

  • Maximum supported weight: 90 kg (198.42 lbs) total / 27 kg (59.52 lbs) upper tiers

  • Minimum height: 680 mm (26.77 in)

  • Multiple stand: Yes

  • Security / Locking: Yes (Lever lock and tooth-interlocking clamps)

  • Support: Ground

  • Use: Keyboard, keyboard stand

  • Weight: 12 kg (26.46 lbs)
